Design № 590 (2005)

TP52 “FRAM XVI”

OVERVIEW

FRAM XVI a fourth generation Farr® Transpac 52, built by Cookson Boats of New Zealand, was developed to compete in both the European and US Transpac 52 competitions. Design #590 was developed to meet the demands of a specific selection of Mediterranean venues. This design is the direct result of first hand experience gained while sailing and competing in Transpac 52 class for the 3 years and based on previous FYD designs #585 (Bribon, Caxia Galicia and Rush) & 586 (Pegasus & Atalanti).

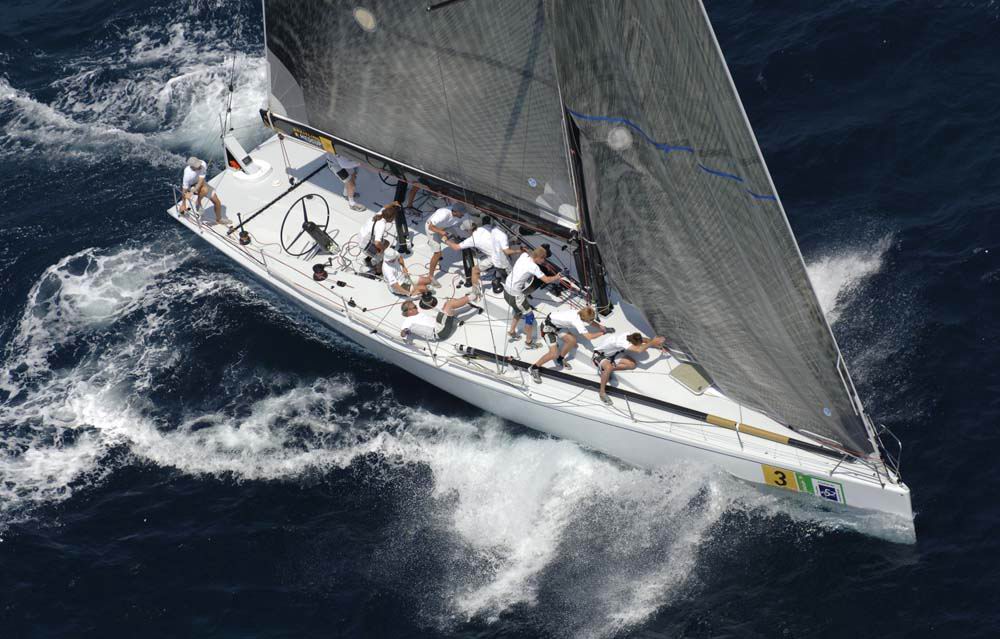

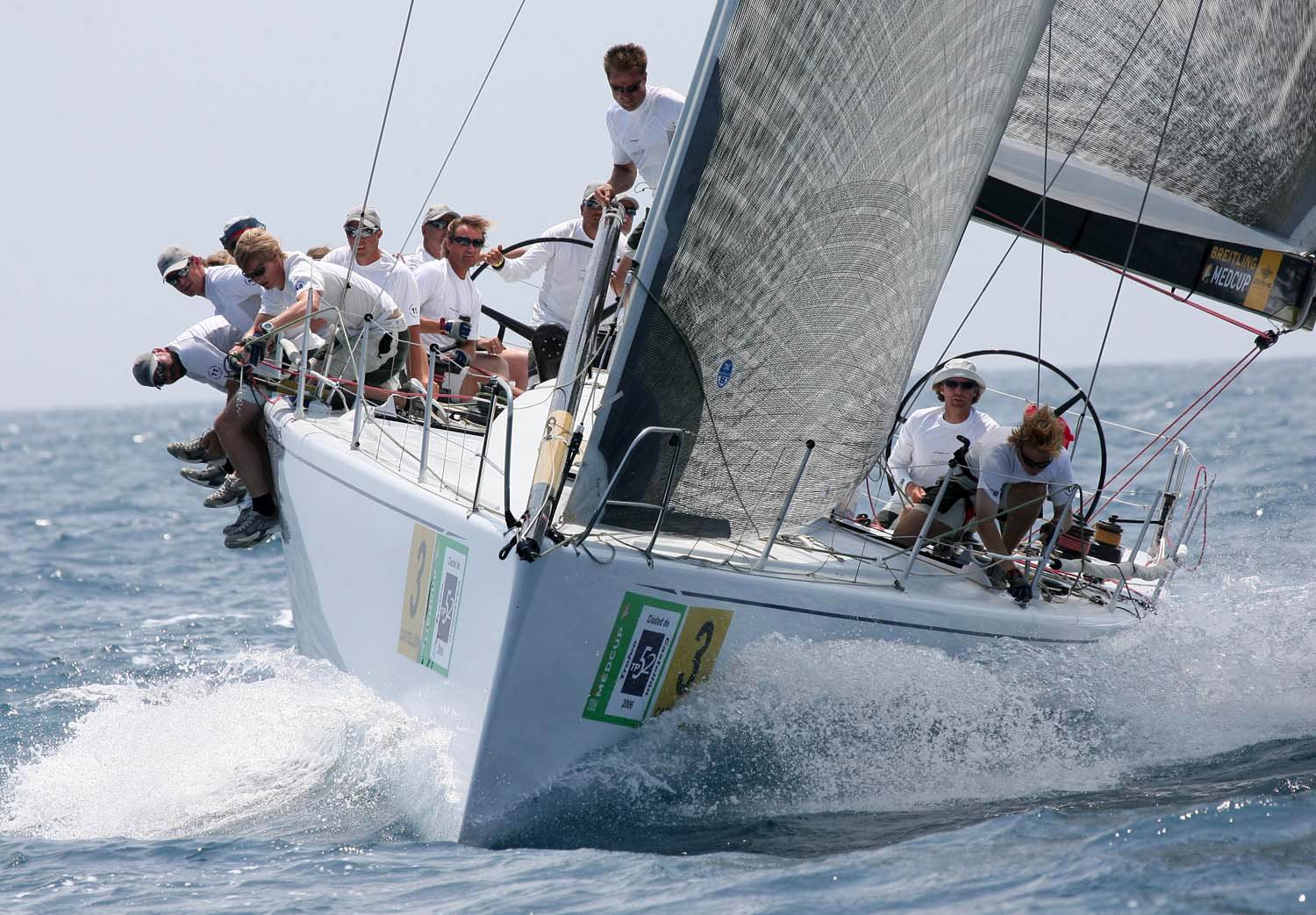

PHOTOS

Click to enlarge.

SPECS

LOA 15.84 m / 51.97 ft
DWL 14.71 m / 48.26 ft
Beam 4.42 m / 14.50 ft
Draft 3.19 m / 10.47 ft
Displ. 7,492 kg / 16,517 lbs
Ballast 4,588 kg / 10,115 lbs
IM 19.72 m / 64.70 ft
J 6.18 m / 20.29 ft
P 20.42 m / 67.00 ft
E 7.40 m / 24.28 ft
ISP 22.40 m / 73.50 ft
SPL 7.62 m / 25.00 ft
