Sector: RACING
Design No. 78

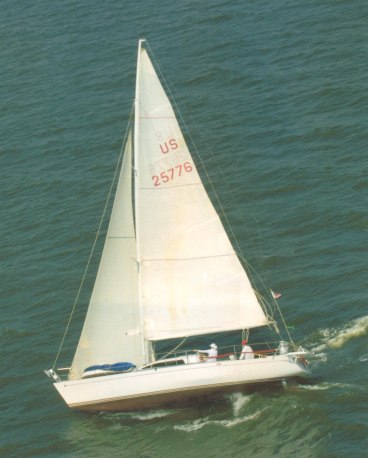

One Ton Ocean Racing Yacht
1 Ton IOR Racing Yacht
Length11.25m / 36′
Design Year1979
BuilderTidewater USA
Description
Design 78, One Ton Ocean Racing Yacht, is a racing yacht designed by Bruce Farr Yacht Designer, Auckland NZ, in 1979. She has an overall length of 36 feet. Built by Tidewater USA.
Visual Assets
Technical Specifications
| Year | 1979 |
| Type | Racing Yacht |
| LOA | 11.25 m36 ft |
| Beam | 3.84 m12.58 ft |
| DWL | 8.76 m28.75 ft |
| Draft | 2.01 m6.58 ft |
| Draft (up) | 0.97 m3.17 ft |
| Displacement | 4,054 kg8,940 lbs |
| Ballast | 1,735 kg3,825 lbs |
Design Plans
DigitizingPlans for this design have not yet been digitized. Tap below and we’ll notify you as soon as plans are available for download — requests also help us prioritize what we digitize next.
Interested in a Farr design?
Whether you’re looking for plans, consulting, or a new project — let’s talk.
Designer’s Notes
Design #78/3 and #79 - 1 Ton IOR Lift Keel Racing Sloop and considerably deeper around the mid-depths position, and has slight increase in sail area. Both wetted surface area and displacement are slightly lower than in the 1977 boats, although heavier than 1978's EXPORT LION (Design No. 79) and the revamped Design No. 64 SCALLYWAG. These dimensional changes gave some indication of likely trends under the Rule for 1980, although a development towards even more depth amidships, increased displacement, and even shorter length had been anticipated. A centerboard configuration was opted for rather than a fixed keel, because at the time these designs were drawn this still appeared to be a viable proposition. The boats had the centerboard pinned down for 1 Ton level racing, but could use the centerboard with its higher rating in open events such as SORC. The rig is twin spreader, 4/5th proportion with large mainsail and high aspect ratio foretriangle. Construction is three skin cold-molded over close spaced stringers spanning frames and plywood bulkheads.
