Sector: CRUISING
Design No. 720M
BAVARIA CRUISER 40 SPORT
40ft Fast Cruising Yacht
Description

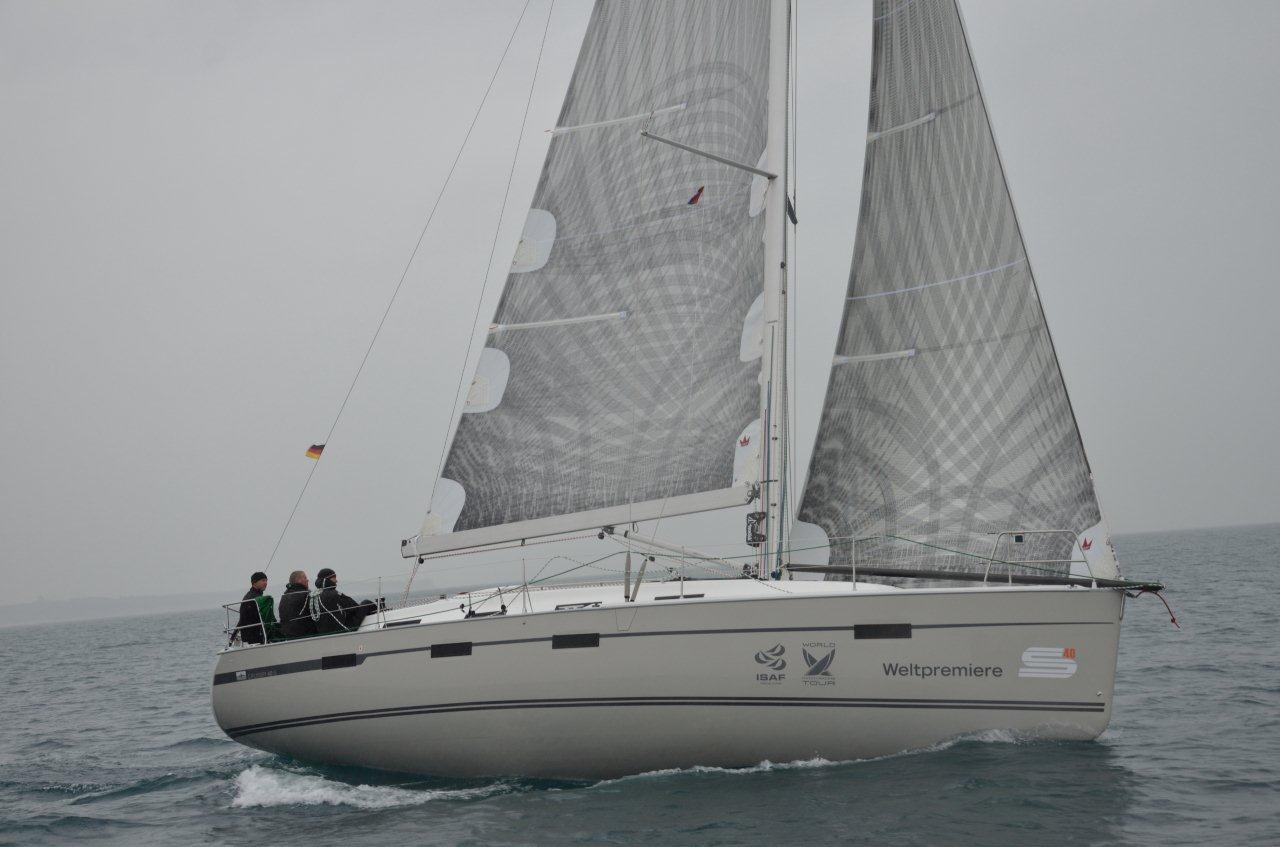

Design 720M is a 40ft Fast Cruising Yacht BAVARIA CRUISER 40 SPORT designed by Farr Yacht Design in 2010. She has an overall length of 40 feet and was built by BAVARIA
Visual Assets
Technical Specifications
| Year | 2010 |
| Type | Cruising Yacht |
| Tags | Production |
| LOA | 12.35 m40 ft |
| Beam | 3.95 m12.96 ft |
| LWL | 10.75 m35.27 ft |
| Draft | 2.3 m7.55 ft |
| Displacement | 8,140 kg17,945 lbs |
| Ballast | 2,736 kg6,031 lbs |
| Rig Material | Aluminum |
Technical Resources
Free downloads — no account required.
-
Download
Promotional Sail Plan
Sail plan drawing.
Design Plans
DigitizingPlans for this design have not yet been digitized. Tap below and we’ll notify you as soon as plans are available for download — requests also help us prioritize what we digitize next.
Interested in a Farr design?
Whether you’re looking for plans, consulting, or a new project — let’s talk.
Designer’s Notes
Design #720M Bavaria Cruiser 40 Sport Utilizing the principal Cruiser 40 concept, a sport package version was developed for the owner who desires competitive sailing coupled with amenities for family cruising. When you have an existing platform you need to be very careful how you add performance. It is possible to float the boat too light, and add too much sail area, and to generally ruin a good boat’s characteristics. We needed to be responsible in order to maintain the goodness of the Cruiser 40, but to add performance, and do it in a cost effective way that could fit within the pricing, and assembly logic that has made Bavaria so successful. We determined that an overall weight reduction targeted at 250kg was the maximum that the hull should be allowed to float up. This has been achieved by increasing the hull core thickness, and eliminating superfluous nonstructural interior components along with removal of a toilet, and the swim platform.
