Sector: RACING
Design No. 590
FRAM XVI
Transpac 52
Length15.84m / 51.97′
Design Year2005
BuilderCookson Boats
Description

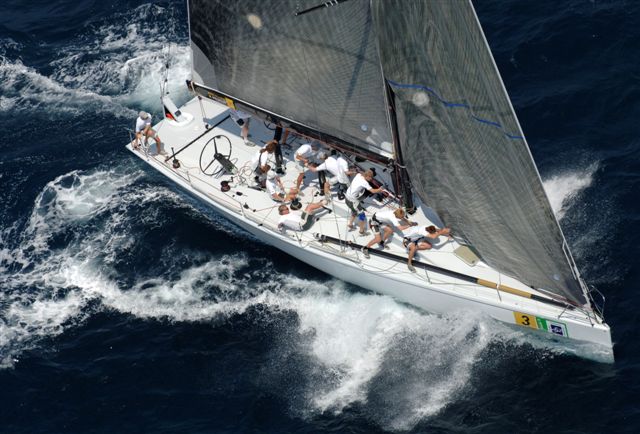

Design 590 is a Transpac 52 FRAM XVI designed by Farr Yacht Design in 2005. She has an overall length of 51.97 feet and was built by Cookson Boats
Visual Assets
Technical Specifications
| Year | 2005 |
| Type | Racing Yacht |
| LOA | 15.84 m51.97 ft |
| Beam | 4.37 m4.34 ft |
| DWL | 14.76 m48.42 ft |
| Draft | 3.19 m10.47 ft |
| Ballast | 4,270 kg9,416 lbs |
| Headsail Hoist (I) | 19.72 m64.7 ft |
| Foretriangle Base (J) | 6.18 m20.29 ft |
| Main Hoist (P) | 20.42 m67 ft |
| Main Foot (E) | 7.49 m24.57 ft |
| Spinnaker Hoist (ISP) | 22.4 m73.5 ft |
| Spinnaker Pole (SPL) | 7.62 m25 ft |
Technical Resources
Free downloads — no account required.
Design Plans
Available on requestOriginal design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.
24 original drawings in this plan set
2D CADNative CAD plans available.
Interested in a Farr design?
Whether you’re looking for plans, consulting, or a new project — let’s talk.
Designer’s Notes
FRAM XVI a fourth generation Farr® Transpac 52, built by Cookson Boats of New Zealand, was developed to compete in both the European and US Transpac 52 competitions. Design #590 was developed to meet the demands of a specific selection of Mediterranean venues. This design is the direct result of first hand experience gained while sailing and competing in Transpac 52 class for the 3 years and based on previous FYD designs #585 (Bribon, Caxia Galicia and Rush) & 586 (Pegasus & Atalanti).
