Sector: CRUISING
Design No. 490
ATALANTA II
70ft IMS Cruiser/Racer
Length21.34m / 70′
Design Year2001
BuilderGoetz Boats
Description

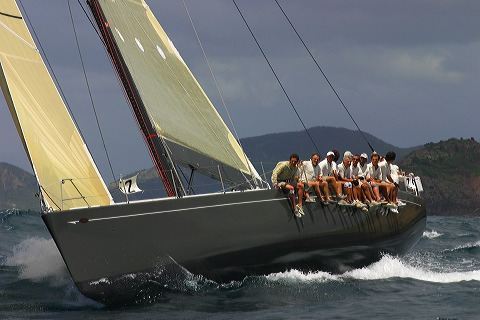

Design 490 is a 70ft IMS Cruiser/Racer ATALANTA II designed by Farr Yacht Design in 2001. She has an overall length of 70 feet.
Visual Assets
Technical Specifications
| Year | 2001 |
| Type | Cruising Yacht |
| LOA | 21.34 m70 ft |
Technical Resources
Free downloads — no account required.
Design Plans
Available on requestOriginal design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.
31 original drawings in this plan set
2D CADNative CAD plans available.
Interested in a Farr design?
Whether you’re looking for plans, consulting, or a new project — let’s talk.
Designer’s Notes
Design #490 IMS 70 C/R The design brief for Design 490 defines a boat that is a successful racing yacht under the IMS with the amenities and ease of handling for cruising with limited crew. The rig is especially flexible and can change configurations from a racing rig with overlapping headsails and running backstays to a cruising rig with non-overlapping headsails and a single topmast backstay. The spreaders are swept for ease of handling and safety while cruising. There is generous sail area for good light wind performance accompanied by the appropriate corresponding stability to give the boat a splendid upwind performance in moderate and strong winds. The boat is designed with a master stateroom aft, crew berthing forward and a comfortable saloon for dining and entertaining. The design makes allowance for a moderate level of outfitting including a generator but requires careful attention to building quality to keep joinery weight to a reasonable minimum.
