Sector: RACING
Design No. 466

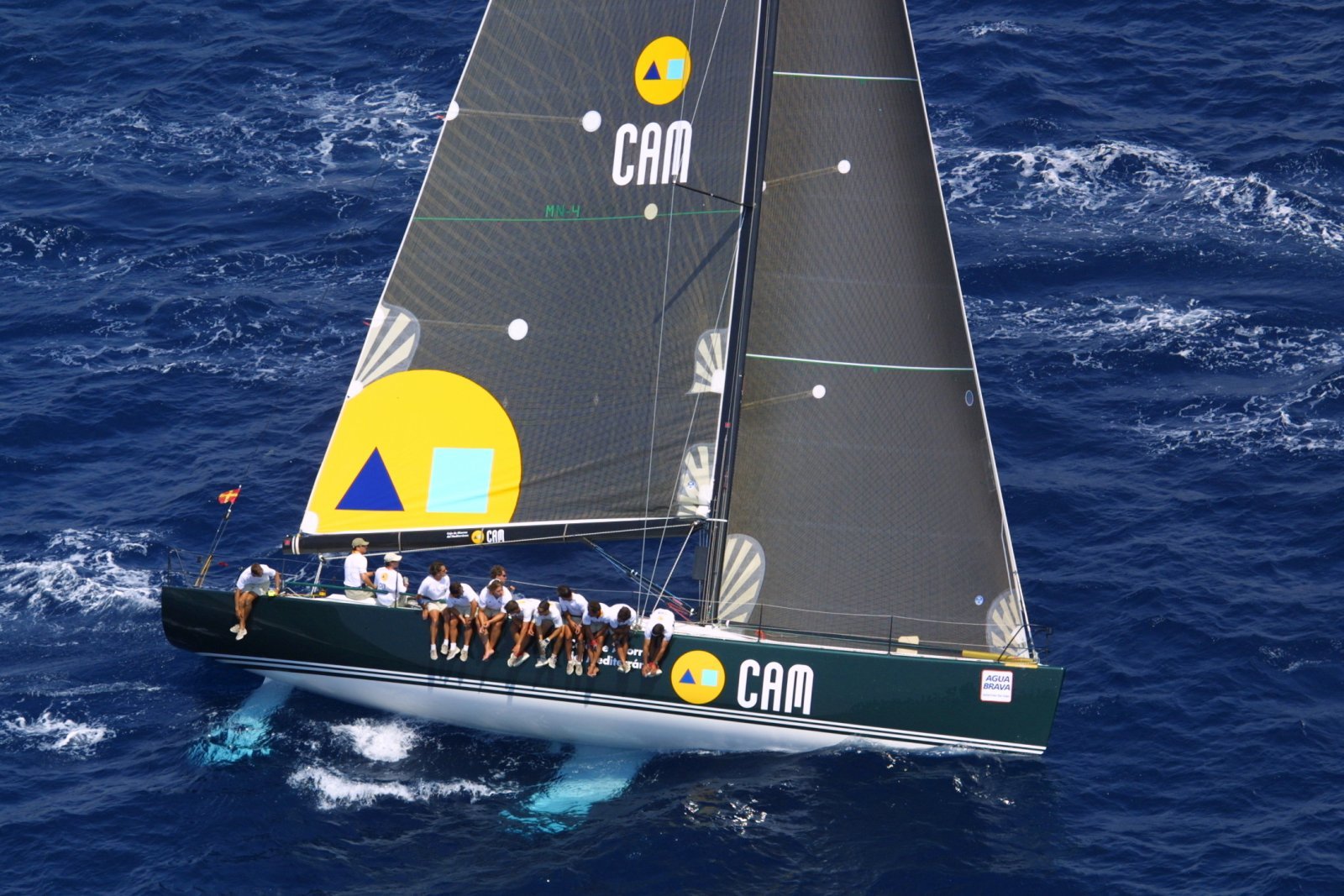

CAM (ex- Esmeralda)
53ft IMS Cruiser/Racer
Length15.86m / 51.99′
Design Year1999
Description
Design 466 is a 53ft IMS Cruiser/Racer CAM (ex- Esmeralda) designed by Farr Yacht Design in 1999. She has an overall length of 51.99 feet.
Visual Assets
Technical Specifications
| Year | 1999 |
| Type | Racing Yacht |
| Rule | IMS |
| LOA | 15.86 m51.99 ft |
| Beam | 3.91 m12.82 ft |
| LWL | 13.44 m44.09 ft |
| Draft | 3.32 m10.9 ft |
| Displacement | 9,871 kg21,466 lbs |
| Ballast | 6,395 kg14,101 lbs |
| Headsail Hoist (I) | 19.59 m64.27 ft |
| Foretriangle Base (J) | 5.6 m18.37 ft |
| Main Hoist (P) | 20.85 m68.41 ft |
| Main Foot (E) | 7.65 m25.1 ft |
Technical Resources
Free downloads — no account required.
Design Plans
Available on requestOriginal design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.
23 original drawings in this plan set
2D CADNative CAD plans available.
