Sector: CRUISING
Design No. 425
FARR 56 PH
56ft Pilothouse Cruising Yacht
Design Plans — Available on RequestDescription

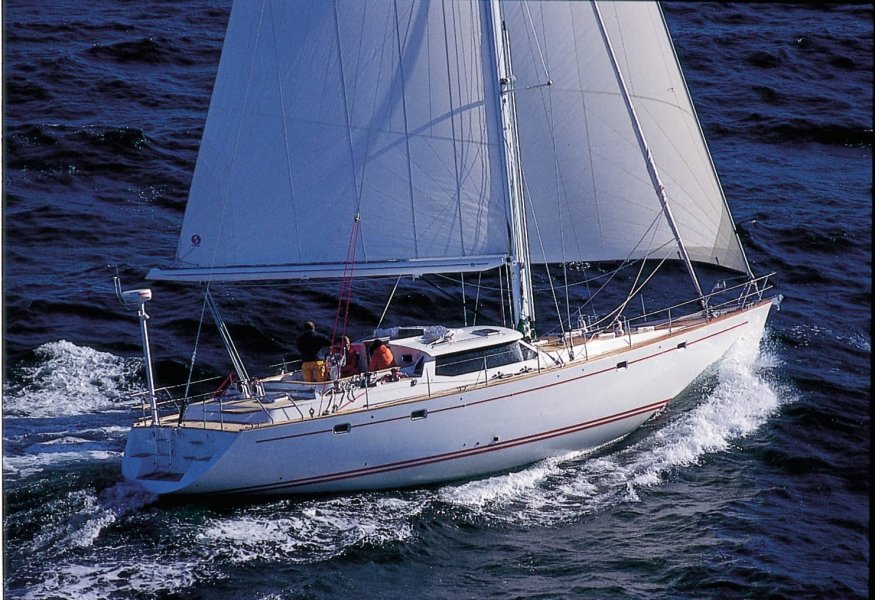

Design 425 is a 56ft Pilothouse Cruising Yacht FARR 56 PH designed by Farr Yacht Design in 1999. She has an overall length of 56 feet and was built by BSI Marine Sweden A.B.
Visual Assets
Technical Specifications
| Year | 1999 |
| Type | Cruising Yacht |
| Tags | Production |
| LOA | 17.6 m56 ft |
| Beam | 5.06 m16.58 ft |
| LWL | 15.3 m50.2 ft |
| DWL | 15.3 m50.25 ft |
| Draft | 2.5 m8.25 ft |
| Displacement | 20,500 kg45,100 lbs |
| Ballast | 6,750 kg14,036 lbs |
| Headsail Hoist (I) | 22.36 m73.33 ft |
| Foretriangle Base (J) | 6.74 m23 ft |
| Main Hoist (P) | 19.61 m64.25 ft |
| Main Foot (E) | 6.93 m22.75 ft |
| Spinnaker Pole (SPL) | 8.74 m28.58 ft |
| Rig Type | Cutter |
Technical Resources
Free downloads — no account required.
-
Download
Brochure
Original promotional brochure.
Design Plans
Available on requestOriginal design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.
37 original drawings in this plan set
2D CADNative CAD plans available.
Interested in a Farr design?
Whether you’re looking for plans, consulting, or a new project — let’s talk.
Designer’s Notes
Design #425 Farr 56 Pilot House The Farr 56 Pilot House is the ideal yacht in the range for the long term cruising couple who plan to spend extended periods of time on board without the need for additional crew. It shares the light and airy pilothouse, large internal volume, cavernous deck storage, great machinery access and a palatial aft cabin, that have all become the signature of the Pilot house range. A modern yacht has to fulfil many functions from blasting along in the tradewinds, sailing around the bay in light winds to corporate entertaining or providing a safe platform for family holidays. The Farr 56 is at home and comfortable in all of these habitats.
