Sector: RACING
Design No. 418
BIG APPLE III
45ft IMS Racing Yacht
Length13.72m / 45′
Design Year1997
BuilderCookson Boats
Description

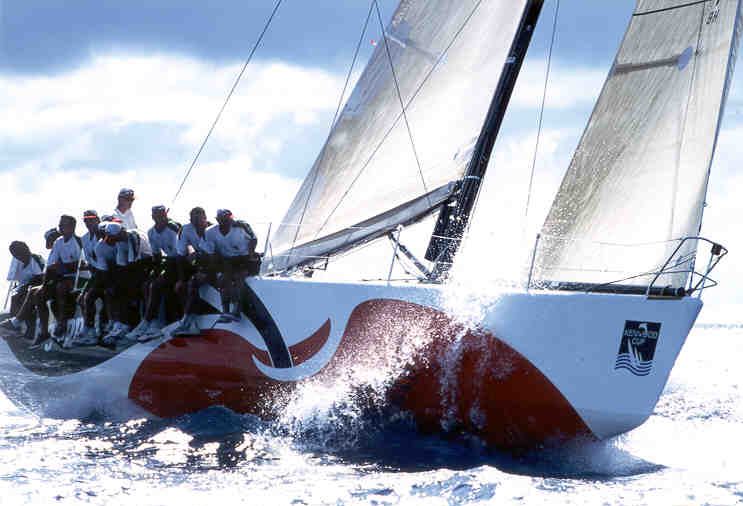

Design 418 is a 45ft IMS Racing Yacht BIG APPLE III designed by Farr Yacht Design in 1997. She has an overall length of 45 feet.
Visual Assets
Technical Specifications
| Year | 1997 |
| Type | Racing Yacht |
| Rule | IMS |
| LOA | 13.72 m45 ft |
Technical Resources
Free downloads — no account required.
-
Download
418 Promotional Sailplan
Promotional Sailplan
-
Download
418 Promotional Deckplan
Promotional Deckplan
-
Download
418 Promotional Interior
Promotional Interior
-
Download
Promotional Deck Plan
Deck layout drawing.
-
Download
Promotional Interior Layout
Interior arrangement drawing.
-
Download
Promotional Sail Plan
Sail plan drawing.
Design Plans
Available on requestOriginal design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.
19 original drawings in this plan set
2D CADNative CAD plans available.
Interested in a Farr design?
Whether you’re looking for plans, consulting, or a new project — let’s talk.
Designer’s Notes
Design #418 IMS 45 BIG APPLE III has the rig concept of the Corel 45 (Design #369) with a hull that is more characteristic of our IMS 49s. Relative to the Corel 45, BIG APPLE III is the same LOA, same displacement, 44cm shorter on the waterline, 6cm narrower on the waterline and has 5% less sail area. Sailing stability is similar to the Corel 45. BIG APPLE III was specifically designed for the Kenwood Cup which means moderate to strong winds and waves. The hull shape is highly IMS optimized with some emphasis on all-around performance (upwind, reaching, running) versus just upwind and downwind. The appendages are high aspect ratio fins incorporating our latest proprietary laminar flow foil section. The keel does not have a bulb.
