Sector: RACING
Design No. 414
CM60
60ft Racing Yacht
Length18.46m / 60′
Design Year1997
BuilderCarroll Marine
Description
Design 414, Carroll Marine 60, is a racing yacht designed by Farr Yacht Design in 1997. She has an overall length of 60 feet (18.5m). Built by Carroll Marine

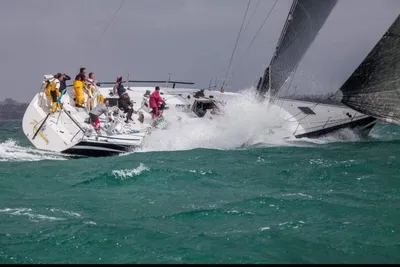

Visual Assets
Technical Specifications
| Year | 1997 |
| Type | Racing Yacht |
| Tags | Production |
| LOA | 18.46 m60 ft |
| Beam | 4.95 m16.24 ft |
| LWL | 15.91 m52.2 ft |
| Draft | 4 m13.12 ft |
| Displacement | 17,000 kg37,479 lbs |
| Ballast | 6,500 kg14,330 lbs |
| Keel Type | Fixed |
| Hull Construction | Composite |
| Headsail Hoist (I) | 23.73 m77.85 ft |
| Foretriangle Base (J) | 7.13 m23.39 ft |
| Main Hoist (P) | 24.8 m81.35 ft |
| Main Foot (E) | 8.89 m29.17 ft |
| Rig Type | Sloop |
Technical Resources
Free downloads — no account required.
Design Plans
Available on requestOriginal design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.
42 original drawings in this plan set
2D CADNative CAD plans available.
