Sector: ONE DESIGN
Design No. 369
FARR 45 (x COREL 45)
45ft One Design Racing Yacht
Length13.86m / 45.47′
Design Year1996
BuilderCarroll Marine (USA), DK YACHTS, OVINGTON
Description

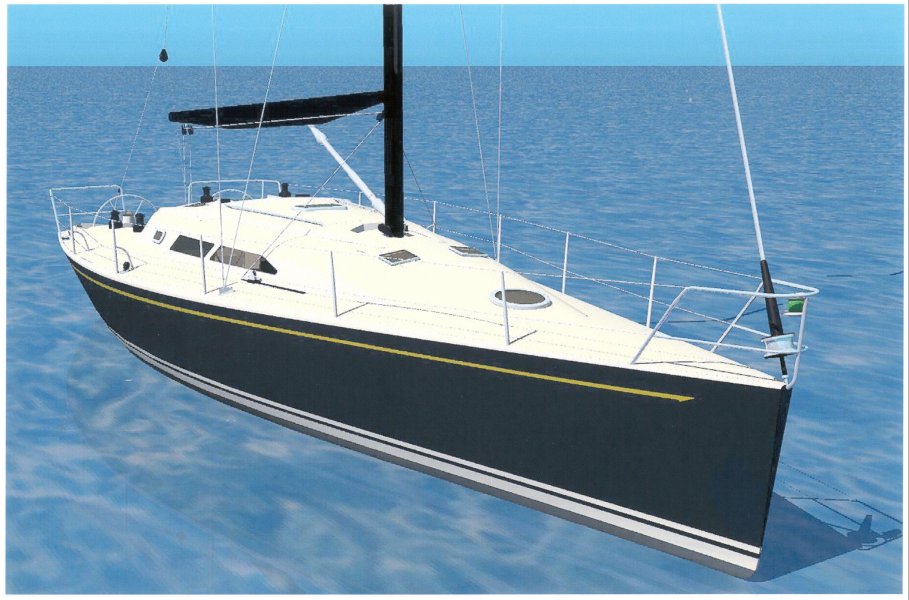

Design 369 is a 45ft One Design Racing Yacht FARR 45 (x COREL 45) designed by Farr Yacht Design in 1996. She has an overall length of 45.47 feet and was built by Carroll Marine (USA), DK YACHTS, OVINGTON
Visual Assets
Technical Specifications
| Year | 1996 |
| Type | One Design |
| Rule | IMS |
| Tags | Production |
| LOA | 13.86 m45.47 ft |
| Beam | 4.24 m13.91 ft |
| LWL | 12.22 m40.08 ft |
| DWL | 12.24 m40.16 ft |
| Draft | 2.9 m9.52 ft |
| Displacement | 6,937 kg15,294 lbs |
| Ballast | 3,643 kg8,301 lbs |
| Keel Type | Fin |
| Hull Construction | Fin Keel w/bulb |
| Hulls Built | 20 |
| Headsail Hoist (I) | 18.07 m59.28 ft |
| Foretriangle Base (J) | 5.44 m17.8 ft |
| Main Hoist (P) | 18.81 m61.71 ft |
| Main Foot (E) | 6.76 m22.2 ft |
| Rig Type | Fractional Sloop |
Technical Resources
Free downloads — no account required.
Design Plans
Available on requestOriginal design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.
25 original drawings in this plan set
2D CADNative CAD plans available.
Interested in a Farr design?
Whether you’re looking for plans, consulting, or a new project — let’s talk.
Designer’s Notes
Design #369 Farr 45 September 1996 The Farr 45 project is the result of extensive studies of the current market place, new construction techniques and the IMS rule trends by the combined resources of Farr Yacht Design, Stagg Yachts and Carroll Marine. This study indicated that there was a clear opening for an economical, high performance race boat that could benefit from new technologies and give a strong promise of prolonged competitive life (good resale value) in IMS, PHRF, CHS and One Design regattas. At Farr Yacht Design, Ltd. the IMS rule is under continuous analysis through our involvement in Grand Prix programs. Complementing this is FYD's experience with the design (and Stagg Yachts's experience with the administration) of the very successful MUMM 36 and MUMM 30 One Design programs, and the 39ML IMS/PHRF project. This enormous wealth of knowledge and experience was used in developing the Farr 45.
