Sector: RACING
Design No. 344
ILC 40 Racing Yacht
Length12.49m / 40.98′
Design Year1994
Description

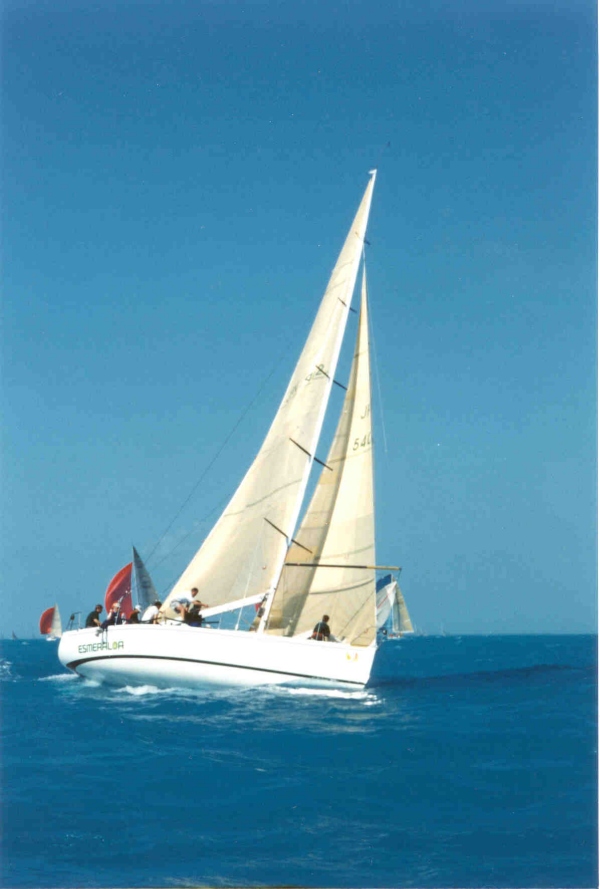

Design 344 is a ILC 40 Racing Yacht designed by Farr Yacht Design in 1994. She has an overall length of 40.98 feet.
Visual Assets
Technical Specifications
| Year | 1994 |
| Type | Racing Yacht |
| Rule | ILC |
| LOA | 12.49 m40.98 ft |
| Beam | 3.99 m13.09 ft |
| DWL | 10.74 m35.24 ft |
| Draft | 2.59 m8.5 ft |
| Displacement | 5,660 kg12,478 lbs |
| Ballast | 3,597 kg7,930 lbs |
| Headsail Hoist (I) | 15.78 m51.77 ft |
| Foretriangle Base (J) | 4.56 m14.96 ft |
| Main Hoist (P) | 16.84 m55.25 ft |
| Main Foot (E) | 6.18 m20.28 ft |
Technical Resources
Free downloads — no account required.
Design Plans
Available on requestOriginal design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.
24 original drawings in this plan set
2D CADNative CAD plans available.
Interested in a Farr design?
Whether you’re looking for plans, consulting, or a new project — let’s talk.
Designer’s Notes
Design #344 ILC 40 July 1995 Our third generation of ILC 40's have been refined and improved for "grand prix" ILC racing. This is the first year of premier ILC 40 competitions such as the 1995 Admiral's Cup and the ILC 40 Worlds. At Farr Yacht Design, constant analysis and research are key elements for our winning designs. Continuous review of IMS rules and information gained from the vast number of successful boats we have previously designed are incorporated into each new high performance racer. For 1995, seven new Farr ILC 40's have been built from 4 different designs, each targeted to a particular contest or clients needs. The new Farr ILC 40 family has been very impressive in early competitions with wins for PIGS IN SPACE in US regattas such as the Nantucket Gold IMS Regatta and Sesquicentennial Regatta, BRAVA Q8 in Kiel Week and ESMERALDA in the 50th Block Island Race Week
