Sector: RACING
Design No. 339
ILC 40 Racing Yacht
Length12.49m / 40.98′
Design Year1996
Description

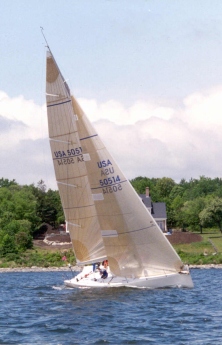

Design 339 is a ILC 40 Racing Yacht designed by Farr Yacht Design in 1996. She has an overall length of 40.98 feet.
Visual Assets
Technical Specifications
| Year | 1996 |
| Type | Racing Yacht |
| Rule | ILC |
| LOA | 12.49 m40.98 ft |
| Beam | 3.95 m12.96 ft |
| DWL | 10.66 m34.97 ft |
| Draft | 2.59 m8.5 ft |
| Displacement | 5,470 kg12,059 lbs |
| Ballast | 3,184 kg7,020 lbs |
| Headsail Hoist (I) | 15.55 m51.02 ft |
| Foretriangle Base (J) | 4.56 m14.96 ft |
| Main Hoist (P) | 16.5 m54.13 ft |
| Main Foot (E) | 6.1 m20.01 ft |
Design Plans
AvailableOriginal design drawings from the Farr archive, sold by the sheet as PDF downloads. Choose only the drawings you want.
3 drawings available · $200 per drawing
2D CADCopies are PDF prints of 2D CAD drawings.
