Sector: RACING
Design No. 314

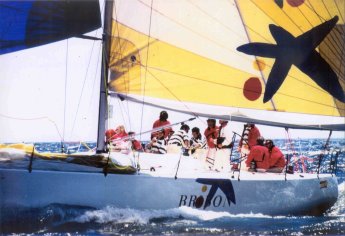

BRIBON
47ft IMS Racing Yacht
Length14.43m / 47.34′
Design Year1993
BuilderFast Yachts
Description
Design 314 is a 47ft IMS Racing Yacht BRIBON designed by Farr Yacht Design in 1993. She has an overall length of 47.34 feet and was built by Fast Yachts
Visual Assets
Technical Specifications
| Year | 1993 |
| Type | Racing Yacht |
| Rule | IMS |
| LOA | 14.43 m47.34 ft |
| Beam | 4.46 m14.63 ft |
| DWL | 12.4 m40.68 ft |
| Draft | 2.85 m9.35 ft |
| Displacement | 9,390 kg20,700 lbs |
| Ballast | 5,240 kg11,552 lbs |
| Headsail Hoist (I) | 17.47 m57.32 ft |
| Foretriangle Base (J) | 5.07 m16.63 ft |
| Main Hoist (P) | 18.96 m62.2 ft |
| Main Foot (E) | 6.86 m22.51 ft |
Technical Resources
Free downloads — no account required.
Design Plans
AvailableOriginal design drawings from the Farr archive, sold by the sheet as PDF downloads. Choose only the drawings you want.
22 drawings available · $200 per drawing
2D CADCopies are PDF prints of 2D CAD drawings.
Interested in a Farr design?
Whether you’re looking for plans, consulting, or a new project — let’s talk.
Designer’s Notes
Design #314 - IMS 47 The Farr IMS 47 design follows in the foot steps of the Farr IMS 46, NINETY SEVEN, line honors winner of the 1994 Sydney Hobart Race and IMS overall winner of the Asia Pacific Ocean Racing Series. Both designs will have a home in the ILC 46 class now formulated by the Offshore Racing Council. Like its predecessor, the IMS 47 can be re-configured for different conditions with adjustments to the trim, displacement, stability and sail area. It is being initially optimized, however, for the lighter and moderate air racing typical of European summers rather than the windier conditions for which the IMS 46 was targeted. Hanging in the balance when designing this yacht, was the ORC's anticipated decision to allow carbon fiber in rudder, and hull and deck construction. In fact, provisions were enacted to accommodate carbon, but not without varying degrees of penalty for its use.
