Sector: CRUISING
Design No. 243
MORGANA
70ft Cruising Yacht
Length21.68m / 71.13′
Design Year1990
BuilderVismara
Description

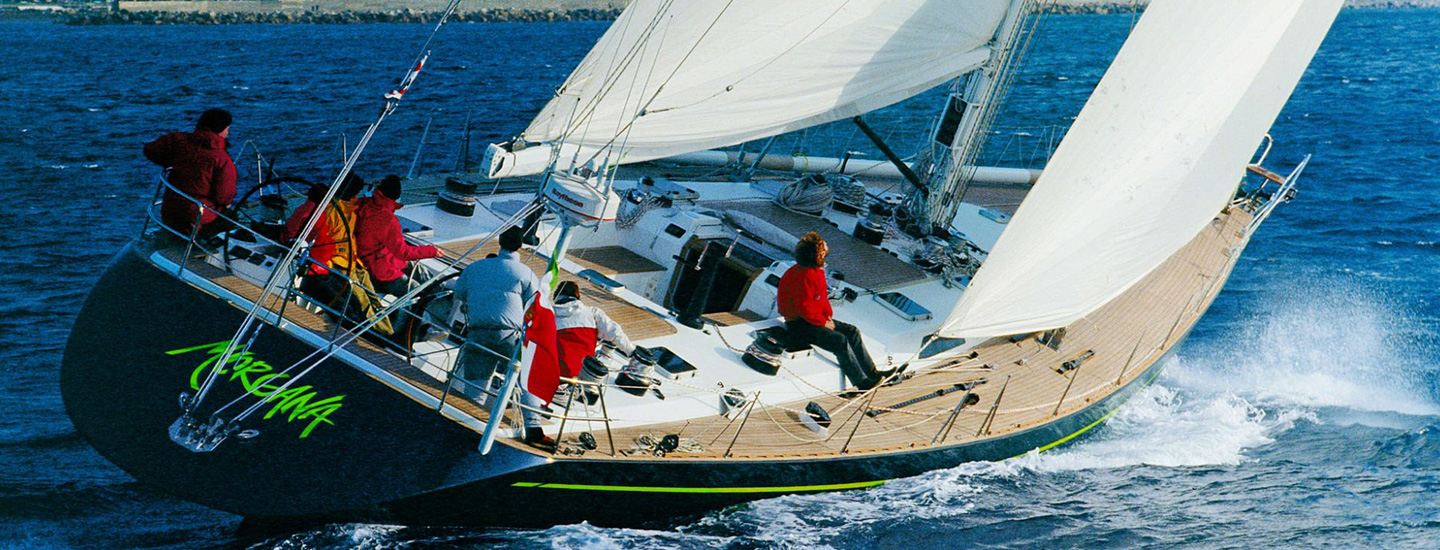

Design 243 is a 70ft Cruising Yacht MORGANA designed by Farr Yacht Design in 1990. Morgana is a mini-maxi designed to express the best of the new ims regulations. The hull by Bruce Farr guarantees top performance and competitiveness, while for the interior design and deck, Vismara has made no compromises in terms of elegance and comfort, in consideration of the boat’s use as a cruiser.
Visual Assets
Technical Specifications
| Year | 1990 |
| Type | Cruising Yacht |
| Rule | IMS |
| LOA | 21.68 m71.13 ft |
| Beam | 5.8 m19.03 ft |
| Draft | 3.5 m11.48 ft |
| Displacement | 28,500 kg62,832 lbs |
| Ballast | 12,500 kg27,558 lbs |
| Keel Type | Fixed |
| Hull Construction | Composite |
Design Plans
Available on requestOriginal design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.
21 original drawings in this plan set
Interested in a Farr design?
Whether you’re looking for plans, consulting, or a new project — let’s talk.
Designer’s Notes
The boat has a high prismatic coefficient, rounded sections with minimum wetted surface, a rather fine bow area but a large-sized stern, with volumes and a maximum beam accentuated for the entire central section of the hull. The deck is very clean and orderly, to the benefit of both types of use: cruising and racing. The rig is prime quality and also selected and fitted with an eye to racing use, with 3 coffee grinders, one in the cockpit for the main sheet and the other two before the central cockpit to aid the primary winches. The double cockpit meets the needs or rationalisation and distribution of the various rig and equipment during a race as well as the space available for “nontechnical” sailing moments. The interiors are made in termanto panels faced in teak, used on both furnishings and bulkheads. This technique has allowed “Morgana” to be a boat with a tough, racing look but with the interiors of a luxury yacht. Management of the space on board has created a division between the crew area in the bow and the owner’s and guests’ quarters in the stern, with the twin-bedded master cabin and the guest cabin with bunks, each one with its own bathroom.
