#136

SAGACIOUS IV, 40ft IOR Racing Yacht

Racing Yacht | IOR | 1983

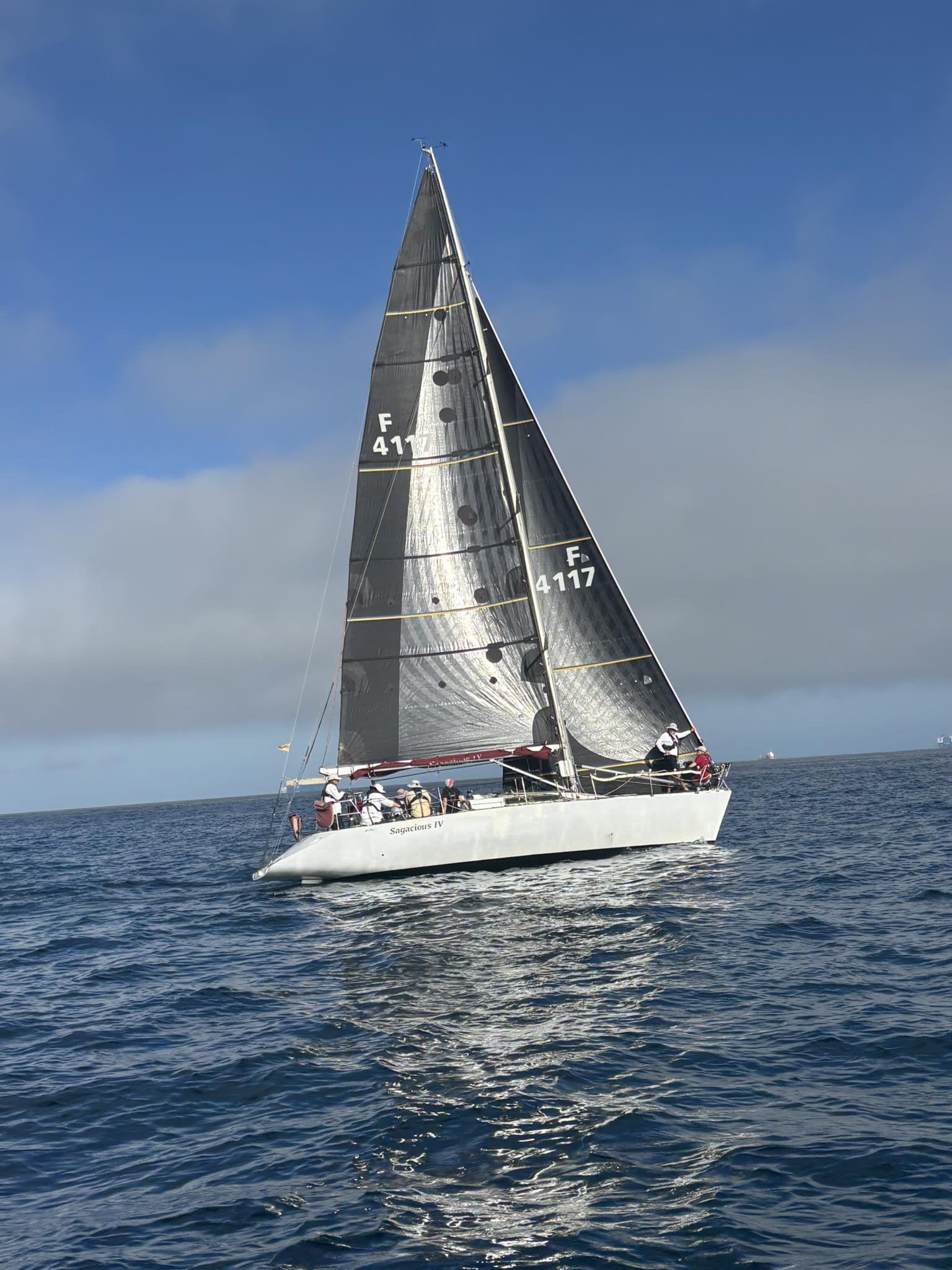

SAGACIOUS IV racing yacht

Design 136 is a 40ft IOR Racing Yacht 1 Ton designed by Farr Yacht Design in 1983. She has an overall length of 40 feet and was built by McCaw NZ

SpecificationValue
Year1983
TypeRacing Yacht
RuleIOR
LOA40 ft / 12.24 m
Beam13.27 ft / 4.05 m
LWL31.96 ft / 9.74 m
Draft7.45 ft / 2.27 m
Displacement13168 lbs / 5975 kg
Ballast6922 lbs / 3139 kg
Main Hoist (P)50.12 ft / 15.28 m
Main Foot (E)18.18 ft / 5.54 m
Headsail Hoist (I)45.11 ft / 13.75 m
Foretriangle Base (J)13.48 ft / 4.11 m
BuilderMcCaw NZ

Designer’s Notes

"Meet “Sagacious IV”, a Farr 40 design 136 (One tonner IOR) and one of the 17 listed “Magic Boats”, conceived by Bruce Farr in 1983. They were well regarded in the elite of sailing alongside such famous names as Geronimo, Exidor and Sundance from NZ - showing how it’s done in rough waters and whatever was thrown at them. Sagacious IV performed well in the Sydney Hobart 1984 and 1985 (1St on handicap). In those days – up wind and off the wind performance was premium – unlike the current trend of favouring courses to suit downwind carbon flyers only. Sagacious IV is now looking every bit the racing beast she is. She has been modernised and refitted to bring her up to today’s requirements including Nav systems and running gear. Showing here as she was in 1985 and as she is now in 2020 the Western Australian Blue Water Race “Geraldton Ocean Classic” (the only pre-qualifier in WA for the Sydney Hobart). This involves a race leg from Fremantle to Geraldton, a weeklong local regatta in Geraldton, and a return leg to Fremantle. The Sagacious IV Offshore Racing team are enjoying the journey developing and racing this old girl back to her former self – restricted of course under IRC rules that do not really favor the sail plan she was designed to sail under. Sagacaious IV now lives in the Swan River at South of Perth Yacht club and goes under the bridges to the ocean at every opportunity – under the ownership of Chris and Annie Hind – she is looking over the horizons to compete once again in the Sydney Hobart – a long way from Fremantle so fingers crossed should the stars align. There are a lot of IOR and similar designs that stand the test of time. They were built for rough water and lived to tell the tale. – go hard or go home "

Technical Resources

Free downloads — no account required.

  • Deck Plan

    Deck layout drawing.

    PDF · 137 KB

    Download
  • Sail Plan

    Sail plan drawing.

    PDF · 104 KB

    Download

Design Plans

Available

Original design drawings from the Farr archive. Pricing is being finalized — contact us for availability or join the waitlist.

9 original drawings in this plan set
